Software platform dependency analysis with F# and Neo4j

It's common for software platforms to consist of many deployed services that communicate with each other and connect to resources over the network. Each service can be made of one or more code projects that can reference other projects and code libraries. Code projects can be written in different programming languages running on a common runtime.

In the .Net landscape projects can be written in C#, VB.Net and F# and run on one of two runtimes, either .Net Framework (netframework) or dotnet core (netcore). Projects can reference two types of libraries, .Net Framework (netXXX) or .Net Standard (netstandardXX) which can be packaged via Nuget or as a part of the runtime.

I participated in a company hackathon just before christmas with the intention of exploring the relationships between the ~50 deployed services, code projects and databases/resources in the platform. The projects are written in either C# or VB.Net and run on either netframework or netcore. The projects reference external nuget libraries that can be built for either netstandardXX or netXXX.

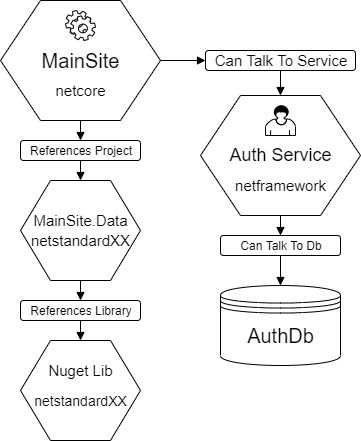

Dependent relationships can be modelled nicely by a graph data structure. Graphs consist of nodes that represent entities and relationships that describe how the entities relate to each other. In this model the nodes are projects, libraries and resources which can reference or talk to each other. An example of the nodes and relationships can be seen in this hypothetical .Net software platform diagram:

ProjectDependencies

The nodes and relationship information can be obtained by cloning all of a platform's code into a directory and scanning this directory with an F# console app. An example of such a platform can be seen in the dependency-visualiser-example repository.

Project and library info

The project, library nodes and REFERENCES relationships can be derived from the code project files (.csproj, .vbproj, fsproj). These are xml files containing information on the project references and the libraries used in the project.

Project files take slightly different forms depending on whether they are netframework or netcore but they contain three types of xml elements. The references between projects are described by the ProjectReference elements. The library references are described by Reference for netframework and PackageReference for netcore.

An example of the relevant nodes of a netframework project file SomeProject.csproj can be seen below:

<?xml version="1.0" encoding="utf-8"?>
<Project xmlns="http://schemas.microsoft.com/developer/msbuild/2003">
  <ItemGroup>
    <!-- Nuget library reference -->
    <Reference Include="Newtonsoft.Json, Version=12.0.0.0, Culture=neutral, PublicKeyToken=30ad4fe6b2a6aeed, processorArchitecture=MSIL">
      <HintPath>..\packages\Newtonsoft.Json.12.0.2\lib\net45\Newtonsoft.Json.dll</HintPath>
    </Reference>

    <!-- Runtime library reference -->
    <Reference Include="System.Net.Http" />
  </ItemGroup>

  <ItemGroup>
    <!-- Project reference to other code project -->
    <ProjectReference Include="..\Other.Project\Other.Project.csproj">
      <Project>{560411b0-4899-48d8-9dd1-662874c17f73}</Project>
      <Name>Other.Project</Name>
    </ProjectReference>
  </ItemGroup>
</Project>

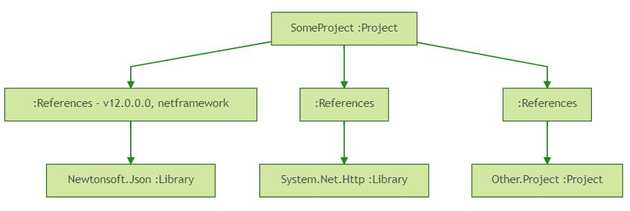

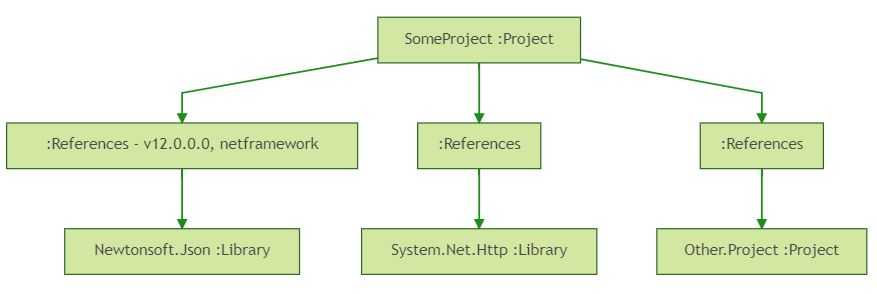

From this file we can derive the following nodes and relationships:

ProjectsAndLibraries

Project and resource relationships

The project, resource and CAN_TALK_TO relationships can be derived from the configuration files in the project file directories. If there are certain files in the directory, such as Web.config, appSettings.json, then the project can be defined as a deployed project.

Each deployed project's configuration can be parsed for information on how to connect to other defined projects and resources. The lines of each config file will be matched against regular expressions to determine whether it can connect to the resource or project. These regex to resource and project mappings can be defined in a json file:

{
  "resources": {
    ";Database=MainDatabase;": "MainDatabase"
  },
  "projects": {
    "auth\\.platform\\.com:123": "C:\\allRepos\\auth-service\\src\\AuthService\\AuthService.csproj"
  }
}

The json includes a resources object which takes regexs as keys and the resource name as a value to define the resources. It includes a projects object which has a regex for the key and an absolute path of the destination project file on disk as a value.

SomeProject's appSettings.json file below matches both of the MainDatabase and AuthService regexs above:

{
  "ConnectionStrings": {
    "DefaultConnection": "Server=SomeServer;Database=MainDatabase;Trusted_Connection=True;MultipleActiveResultSets=true"
    },
  "AuthServiceUrl": "auth.platform.com:123"
}

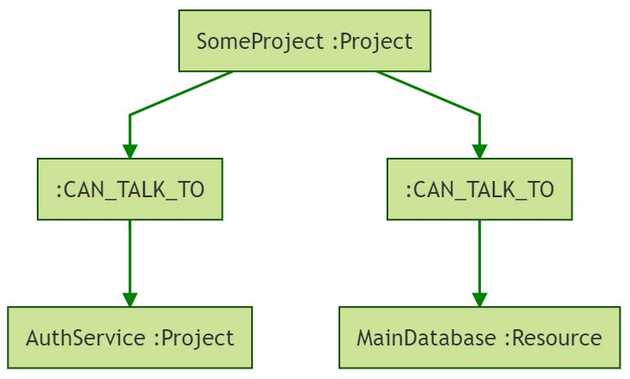

The config file produces the following relationships:

ProjectsAndDatabases

Modeling project data

The console application is going to parse the project and config files into nodes and relationships.

To perform this task it is useful to define the domain. The project nodes can be modelled with:

type ProjectType = NetFramework | NetCore | NotKnown
type CodeProject = CodeProject of name:string * ProjectType

type DeployedProject = DeployedProject of string

type ProjectNode =
  | Code     of CodeProject
  | Deployed of DeployedProject

The type CodeProject wraps a tuple of a string labelled name and a ProjectType which can be either NetFramework, NetCore or NotKnown at that point in the application. The DeployedProject type wraps a name and the ProjectNode can be one of either project types.

The Libraries can be modelled with:

type NugetPackageType = Framework | Standard | Unknown
type NugetLib = NugetLib of name:string * version:string * NugetPackageType

type RuntimeLib = RuntimeLib of string

type LibraryNode =
  | Nuget of NugetLib
  | Runtime of RuntimeLib

A NugetLib contains name and version strings and a NugetPackageType which can be Framework (netXXX), Standard (netstandardXX) or Unknown. A LibraryNode can either be a NugetLib or a RuntimeLib, which wraps a string of the library name.

The last node type is a ResourceNode which wraps a string of the name:

type ResourceNode = ResourceNode of string

The nodes can be either a Project, Library or Resource and can be described by the union:

type Node =
  | Project  of ProjectNode
  | Library  of LibraryNode
  | Resource of ResourceNode

There are two main types of relationships between the nodes, REFERENCES and CAN_TALK_TO. The possible start and end nodes types for each relationship are:

Relationship Start node End node
REFERENCES CodeProject LibraryNode
REFERENCES CodeProject CodeProject
CAN TALK TO DeployedProject ResourceNode
CAN TALK TO DeployedProject DeployedProject

These can be modelled into the Relationship union:

type Relationship =
  | ProjectReferencesLibrary         of CodeProject     * LibraryNode
  | ProjectReferencesProject         of CodeProject     * CodeProject
  | DeployedProjectCanTalkToOther    of DeployedProject * DeployedProject
  | DeployedProjectCanTalkToResource of DeployedProject * ResourceNode

Each case contains a tuple of the correct types for the potential start and end nodes.

Loading data into neo4j

The console app recursively searches a directory with all of the platform code parsing all of the project files and outputting the nodes and relationships into .csv files which can be loaded into neo4j and queried.

Neo4j is easily run in a docker container and the .csv files can be added to a mounted import folder where they will be available to import at the url file:///<filename>. An example of using docker-compose to run this setup can be seen in the repository.

With the container running the url http://localhost:7474 shows the UI and queries can be executed by connecting the web ui to the database.

The projects.csv file can import nodes with the label Project and properties name, deployed and platform with the query:

LOAD CSV WITH HEADERS FROM 'file:///projects.csv' AS line
CREATE (:Project { name: line.name, deployed: line.deployed, platform: line.platform });

The other nodes can be loaded with variations of the above. The relationships can also be loaded in from csv files, the ProjectReferencesProject relationships can be loaded in with:

LOAD CSV WITH HEADERS FROM "file:///project_ref_project.csv" AS csvLine
MATCH (s:Project {name: csvLine.start}),(e:Project {name: csvLine.end})
CREATE (s)-[:REFERENCES]->(e);

All the required data loading queries can be seen in the repository.

Project information queries

With all of the nodes and relationships loaded we can get a birds eye of the platform by querying for the nodes:

MATCH (n) RETURN n LIMIT 100

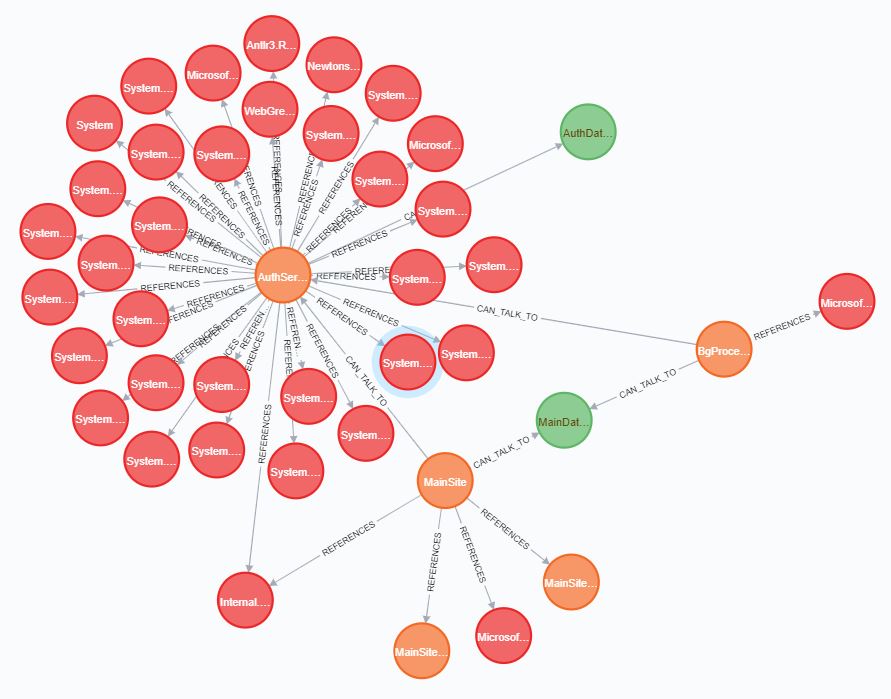

The query matches the first 100 nodes with any label (Project, Library or Resource) and returns the node to be displayed in the UI, which by default also shows the relationships between the nodes:

NodesAndRelationships

Here orange nodes are Projects, red nodes are Librarys and the green nodes are Resources. The arrows between them show the relationships REFERENCES and CAN_TALK_TO.

The graph can be queried with the MATCH keyword, desired properties of the nodes and relationships can be specified using an arrow like syntax.

MATCH p=(sn :MatchLabel)-[r :RELATIONSHIP_TYPE]->(en{prop: 'MatchPropValue'})
RETURN p

This query looks for results p with the start node sn of label MatchLabel, connected by the relationship r of type RELATIONSHIP_TYPE to the end node en that has the property prop with value MatchPropValue.

Query - Projects that depend on others

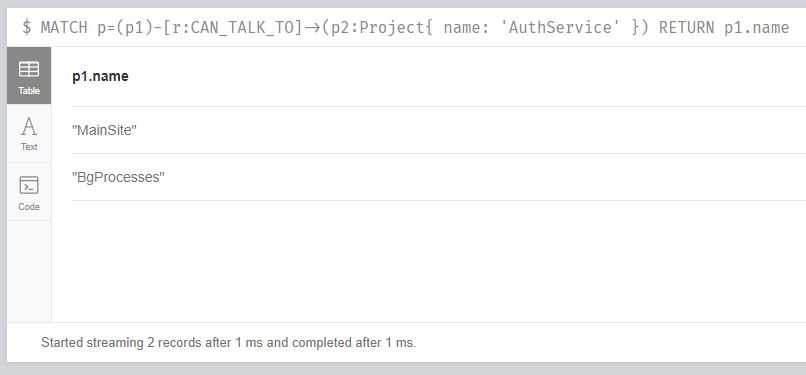

To find out which projects require authentication the graph can be queried for nodes connected by the CAN_TALK_TO relationship nodes with name equal to AuthService and label Project:

MATCH p=(p1)-[r:CAN_TALK_TO]->(p2:Project{name:'AuthService'})
RETURN p1.name

AuthServiceQuery

Query - Library audit

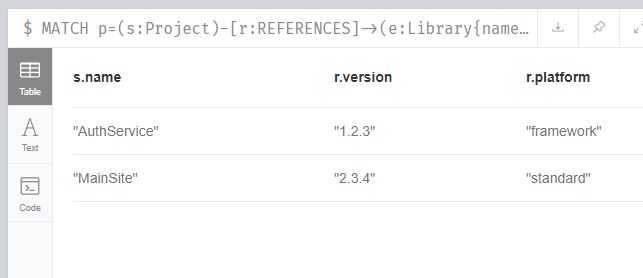

It can be useful to get an a view of the libraries that projects use. If an internal library Internal.Company.Lib which targets netXXX and netstandardXX is used on the platform and a critical bug is fixed in a new version we can write a query to find the projects that consume the library:

MATCH p=(s:Project)-[r:REFERENCES]->(e:Library{name:"Internal.Company.Lib"})
RETURN s.name, r.version, r.platform

LibQuery

Query - Code convention check

Queries can be written to check for breaking of internal code conventions. It is quite common for code solutions to include a separate project for the domain logic with a name that ends in .Domain. It might be useful to keep domain projects free from database or http libraries, such as Dapper and Flurl.Http. It possible to check for projects that break this convention:

MATCH p=(ps)-[r:REFERENCES]->(e:Library)
WHERE ps.name ENDS WITH ".Domain" AND e.name IN ['Dapper', 'Flurl.Http']
RETURN ps.name

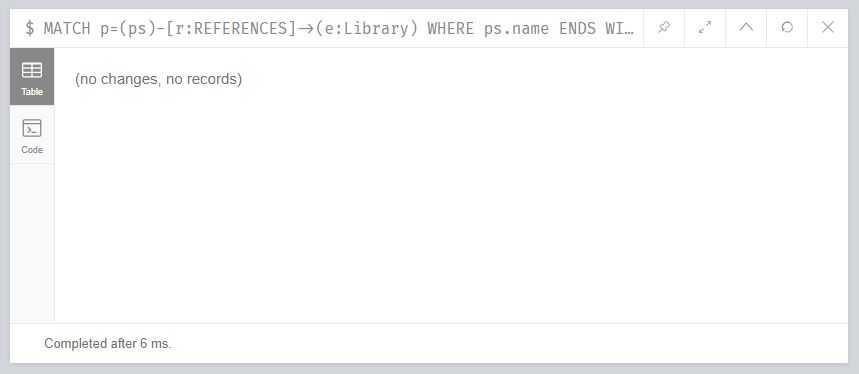

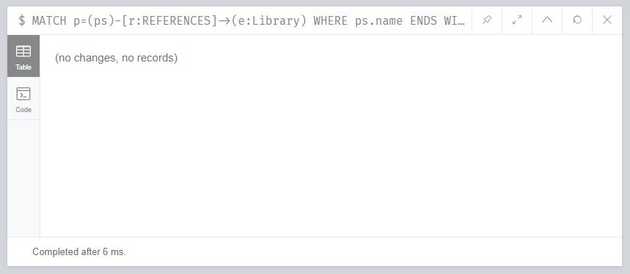

Running this on the dependency-visualiser-example repository shows no convention violations.

ConventionQuery

Conclusion

This post has shown how a .Net software platform dependencies can be modelled and analysed with F# and neo4j. This is my first experience using neo4j and i've been impressed with the intuitive nature of the query language.

The code for the console app is on github in case anyone wants to use it to analyse their platforms.
